>Producto>PON>OLT>GPON OLT

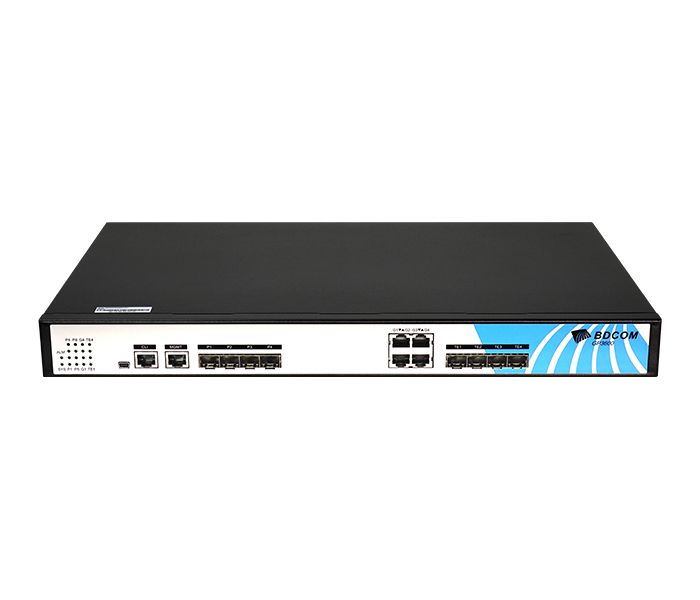

OLT GPON en formato pizza-box de alta densidad

La serie GP3600-D de BDCOM cumple con ITU-T G.984/G.988 y cumple con los requisitos técnicos de acceso a la red sobre OLT GPON. Admite completamente CTC2.0, el descubrimiento automático y la cooperación con ONUs de diferentes fabricantes

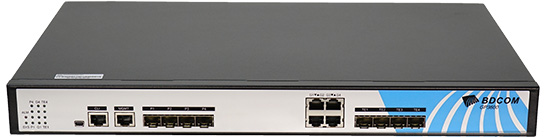

GP3600-04D

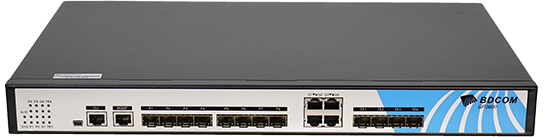

GP3600-08D

Características Destacadas

Admite 4/8 puertos GPON

1U, ocupa poco espacio

La serie GP3600-D está equipada con 4 puertos GE RJ45 y 4 puertos 10GE SFP+

Bajo consumo de energía y bajos costos operativos

CONSULTAR

Parámetro Técnico

GP3600-04D GP3600-08D
PON ports 4
GE uplink 4-Port Gigabit RJ45
10GE uplink 4-Port 10G/GE SFP+
Supported GPON SFP module Class B+, C+, C++, C+++
RJ45 console 1
Mini-USB console 1
Out-of-Band 1
DRAM (MB) 512
Flash (MB) 32
Backplane (Gbps) 126
MAC table 64K
Buffer size (MB) 2
Jumbo frame (KB) 2
IPv4 routing table 32K
IPv6 routing table 8K
Active VLAN 4,094
SVI number 400
Forwarding mode Store-and-forward
AC (V) 100~240
Max. consumption (W) 50
Total output BTU (note: 1000 BTU/hr = 293W) 170.65
Fan number 3
Air-flow Left-right
Noise@25°C(dBA) < 45
Chassis
Dimensions(WxDxH mm) 440.5 x 280 x 44.5
Weight (Kg)(empty) 3.8
Package
Dimensions(WxDxH mm) 576 x 448 x 94
Weight (Kg) 4.8
Operating
Temperature 0~45°C
Humidity (non-condensing ) 10%~85%
Storage
Temperature -40°C-80°C
Humidity (non-condensing ) 5%-95%
Parts Power cord, rackmount kits, console cable
MTBF (Hr) 95,000
Certification CE, FCC, ROHS
PON ports 8
GE uplink 4-Port Gigabit RJ45
10GE uplink 4-Port 10G/GE SFP+
Supported GPON SFP module Class B+, C+, C++, C+++
RJ45 console 1
Mini-USB console 1
Out-of-Band 1
DRAM (MB) 512
Flash (MB) 32
Backplane (Gbps) 126
MAC table 64K
Buffer size (MB) 2
Jumbo frame (KB) 2
IPv4 routing table 32K
IPv6 routing table 8K
Active VLAN 4,094
SVI number 400
Forwarding mode Store-and-forward
AC (V) 100~240
Max. consumption (W) 60
Total output BTU (note: 1000 BTU/hr = 293W) 204.8
Fan number 3
Air-flow Left-right
Noise@25°C(dBA) < 45
Chassis
Dimensions(WxDxH mm) 440.5 x 280 x 44.5
Weight (Kg)(empty) 3.8
Package
Dimensions(WxDxH mm) 576 x 448 x 94
Weight (Kg) 4.8
Operating
Temperature 0~45°C
Humidity (non-condensing ) 10%~85%
Storage
Temperature -40°C-80°C
Humidity (non-condensing ) 5%-95%
Parts Power cord, rackmount kits, console cable
MTBF (Hr) 95,000
Certification CE, FCC, ROHS

Características

Standards

ITU-T G.984/G.988

IEEE 802.11D, Spanning Tree

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

IEEE 802.3ad physical link static/dynamic aggregation (LACP), Ethernet - II

VLAN

Port/IP/Protocol/MAC-based VLAN

4K VLAN

QinQ and flexible QinQ

Multicast

L2 multicast

IGMP snooping

MLD snooping

Fast-leave

Layer 3 Function

Static route

RIPv1/v2

OSPF

BGP

QoS

Backpressure flow control (half duplex)

IEEE 802.3x flow control (full duplex)

IEEE 802.1p, CoS

WRR, SP and FIFO queue schedule

Limiting the uplink/downlink rate based on each ONU

DBA and SLA

Reliability

Unidirectional Link Detection (UDLD)

Abnormal luminescence ONU detection such as long luminescence

IEEE 802.3ad LACP

DHCP Function

Server/Relay/Client

DHCP snooping

DHCP option 66,67,82

DAI

IP source guard

Network Availability

STP/RSTP/MSTP

BPDU guard

EAPS

Network Security

L2~4 ACL

Flow-based ACL

MAC limitation

MAC sticky

Port isolation

Packet storm control

Transmission data encryption on the PON interface

Anti attack for DDOS, TCPSYN-flood, UDP-flood, ARPflood, etc.

Management

Various management modes such as CLI, Telnet, SSH, HTTP, SSL and SNMP

ISSU

FTP/TFTP

SPAN/RSPAN

NTP

Información de Pedido

GP3600-D Series
BDCOM GP3600-04D 4-Port GPON OLT with 4-Port Gigabit RJ45 + 4-Port 10G SFP+ (single 100-240V power supply, 19-inch rack-mounted installation)
BDCOM GP3600-04D-2AC 4-Port GPON OLT with 4-Port Gigabit RJ45 + 4-Port 10G SFP+ (dual 100-240V power supply, 19-inch rack-mounted installation)
BDCOM GP3600-08D 8-Port GPON OLT with 4-Port Gigabit RJ45 + 4-Port 10G SFP+ (single 100-240V power supply, 19-inch rack-mounted installation)
BDCOM GP3600-08D-2AC 8-Port GPON OLT with 4-Port Gigabit RJ45 + 4-Port 10G SFP+ (dual 100-240V power supply, 19-inch rack-mounted installation)
Optical modules
OLT-GSFP-C+ OLT SFP module, Class C+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
OLT-GSFP-C++ OLT SFP module, Class C++ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
OLT-GSFP-C+++ OLT SFP module, Class C+++ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
