Unidad de Puerta de Enlace para Hogar (HGU) de Voz XPON

La serie GP1704 de BDCOM es una HGU inteligente con funciones integradas de wireless, VoIP y CATV.

La serie GP1704 de BDCOM está orientada hacia la red integrada de multi-servicios en la red de operadores de telecomunicaciones.


GP1704-2FV
GP1704-2GV-22A
GP1704-4GV
GP1704-4GV-22A

Características Destacadas

Admite la velocidad de transmisión PON de bajada de 2.5 Gbps / subida de 1.25 Gbps

Admite la velocidad de transmisión PON de bajada de 1.25 Gbps / subida de 1.25 Gbps

Para garantizar la capacidad segura de transporte de servicios de ONU, BDCOM ha desarrollado técnicas que incluyen VLAN, STP, aislamiento de puerto, ACL, QoS y control de tormenta de difusión

CONSULTAR

Parámetro Técnico

GP1704-2FV GP1704-2GV-22A GP1704-4GV GP1704-4GV-22A
PON ports 1-Port SC/UPC
UNI ports 1-Port Gigabit RJ45
1-Port 100M RJ45
WIFI 300Mbps
Voice 1
Optical power
TX power 0.5~5dBm
RX sensitive < -28dBm
AC adaptor Input: 100-240V AC
Output: 12V/1A
Max. consumption (W) 10
Chassis
Dimensions (WxDxH mm) 140 x 105 x 30
Weight(Kg)(empty) 0.4
Package
Dimensions (WxDxH mm) 277 x 176 x 38
Weight (Kg) 0.3
Operating Temperature Humidity -0℃ -45℃ 10%~85% (non-condensing )
Storage Temperature Humidity -40℃ -85℃ 5%-95% (non-condensing )
Accessories Power adaptor
PON ports 1 SC/APC
UNI ports 2-Port Gigabit RJ45
WIFI 1200Mbps
Voice 1
USB 1
Optical power
TX power 0.5~5dBm
RX sensitive < -28dBm
AC adaptor Input: 100-240V AC
Output: 12V/1.5A
Max. consumption (W) 15
Chassis
Dimensions (WxDxH mm) 230 x 140 x 34.9
Weight(Kg)(empty) 0.5
Package
Dimensions (WxDxH mm) 325 x 255 x 48
Weight (Kg) 0.7
Operating Temperature Humidity -0℃ -45℃ 10%~85% (non-condensing )
Storage Temperature Humidity -40℃ -85℃ 5%-95% (non-condensing )
Accessories Power adaptor
PON ports 1 SC/UPC
UNI ports 4-Port Gigabit RJ45
WIFI 300Mbps
Voice 2
Optical power
TX power 0.5~5dBm
RX sensitive < -28dBm
AC adaptor Input: 100-240V AC
Output: 12V/1.5A
Max. consumption (W) 15
Chassis
Dimensions (WxDxH mm) 230 x 140 x 34.9
Weight(Kg)(empty) 0.4
Package
Dimensions (WxDxH mm) 325 x 255 x 48
Weight (Kg) 0.7
Operating Temperature Humidity -0℃ -45℃ 10%~85% (non-condensing )
Storage Temperature Humidity -40℃ -85℃ 5%-95% (non-condensing )
Accessories Power adaptor
PON ports 1 SC/UPC
UNI ports 4-Port Gigabit RJ45
WIFI 1200Mbps
Voice 2
USB 1
Optical power
TX power 0.5~5dBm
RX sensitive < -28dBm
AC adaptor Input: 100-240V AC
Output: 12V/1.5A
Max. consumption (W) 15
Chassis
Dimensions (WxDxH mm) 230 x 140 x 34.9
Weight(Kg)(empty) 0.4
Package
Dimensions (WxDxH mm) 325 x 255 x 48
Weight (Kg) Weight (Kg)
Operating Temperature Humidity -0℃ -45℃ 10%~85% (non-condensing )
Storage Temperature Humidity -40℃ -85℃ 5%-95% (non-condensing )
Accessories Power adaptor

Características

Standards

ITU-T G.984/G.988,

IEEE802.3ah

GBT33845-2017, YD/T 1475-2006

IEEE 802.1Q, VLAN

ITU-T Y.1291

VLAN

4K VLAN

Port based VLAN

IEEE 802.1Q VLAN

CTC2.0 defined VLAN

IP Service

DHCP server/client

Routing/Bridging/Hybrid mode

DNS, DDNS

PPPOE

NAT/NAPT

GPON Service

AES128 algorithm encryption

MAC/Loid/Hybrid authentication

QoS

Backpressure flow control (half-duplex)

IEEE 802.3x flow control (full duplex)

Against Head of Line mechanism

IEEE 802.1p, CoS

Four priority queues on each port

WR, SP and FIFO queue schedule algorithms

Port rate limit

SLA and DBA

Management

Management modes including CLI, HTTP, SNMP, TR069 and TELNET

Software upgrade through TFTP and WEB, OMCI, etc.

Local or server syslog

Voice Service

SIP, T.38 FAX

Three-way calling

Call waiting

Hot-line calling

Network Security

MAC address number limit

MAC filter

Port protect

Multicast

IGMP-Snooping

CTC defined dynamic multicast function

MLD-Snooping

Multicast group limitation

Multicast fast-leave

Reliability

Loop detection

Dying-Gasp

TX/RX optical power alarm

Wireless

802.11 b/g/n

802.11 ac(-22A models)

2x2 MIMO

Multi SSID

SSID encryption

Wireless channel (configurable)

Información de Pedido

GP1704 Series

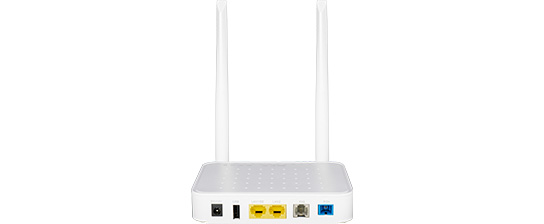

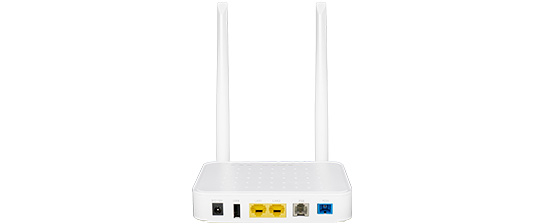

GP1704-2FV xPON Voice WiFi ONU, 1-Port GPON/EPON (SC/UPC), 1-Port Gigabit RJ45 + 1-Port 100M RJ45 + 1-Port RJ11(POTS), single band 300M WiFi, plastic casing, DC12V/1A power adaptor

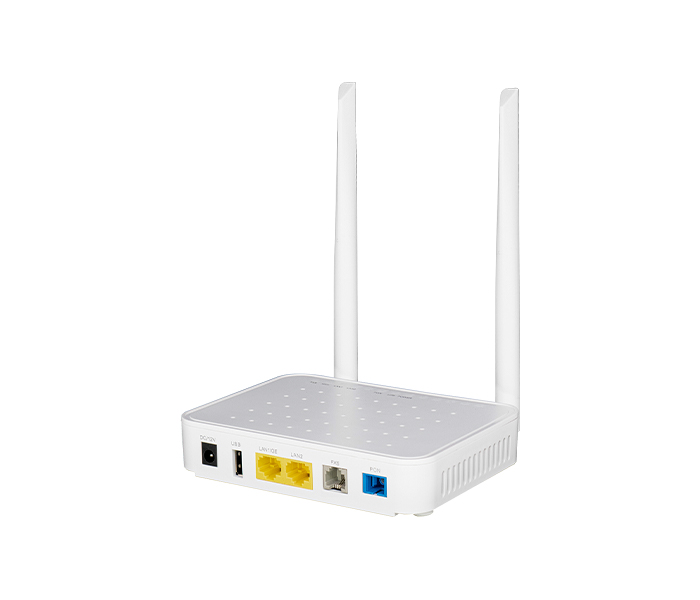

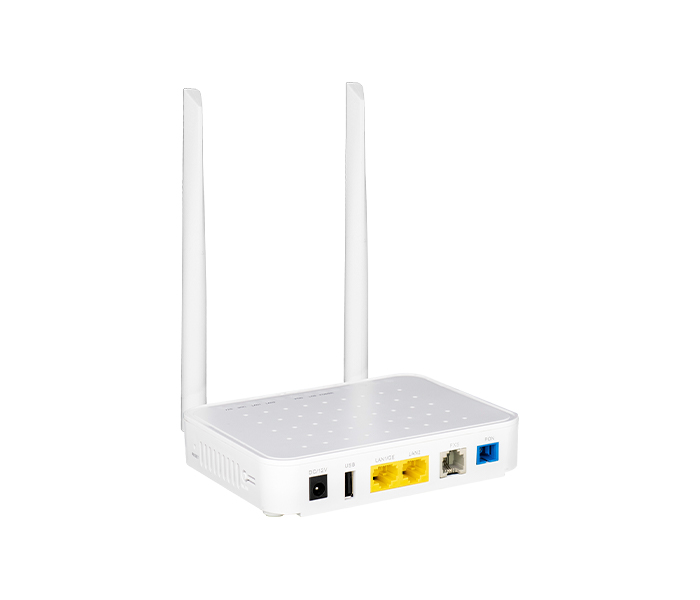

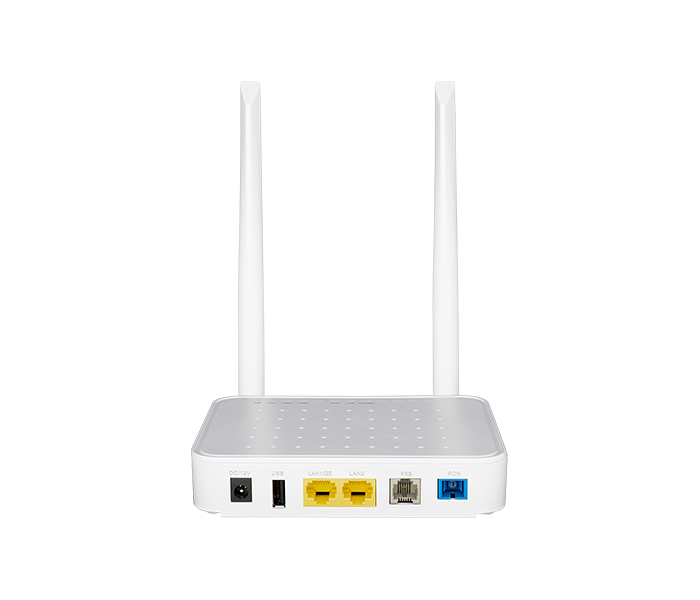

GP1704-2GV-22A xPON Voice WiFi ONU, 1-Port GPON/EPON (SC/UPC), 2-Port Gigabit RJ45 + 1-Port RJ11(POTS), dual band 1200M WiFi, 2 external antennas, plastic casing, DC12V/1.5A power adaptor
GP1704-4GV xPON Voice WiFi ONU, 1-Port GPON/EPON (SC/UPC), 4-Port Gigabit RJ45 + 2-Port RJ11(POTS), single band 300M WiFi, plastic casing, DC12V/1.5A power adaptor

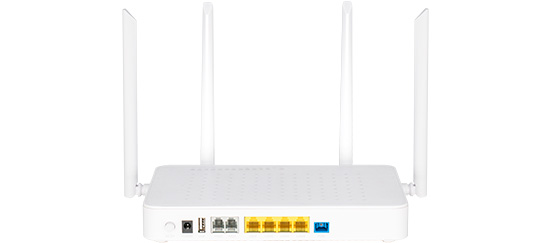

GP1704-4GV-22A xPON Voice WiFi ONU, 1-Port GPON/EPON (SC/UPC), 4-Port Gigabit RJ45 + 2-Port RJ11(POTS), dual band 1200M WiFi, 4 external antennas, plastic casing, DC12V/1.5A power adaptor
